Home /Products/Three Phase Inverter/Rexroth VFC3610-5K50-3P4-MNA-7P-NNNNN-NNNN 3 Phase 380V VFD Frequency Converter Motor Three Phase Drive 24*14*25cm

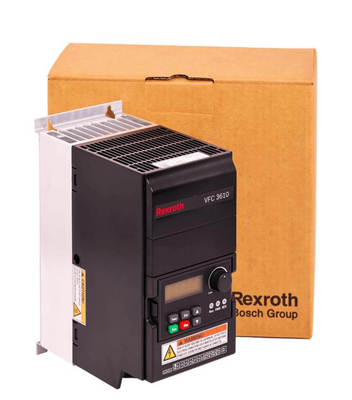

Rexroth VFC3610-5K50-3P4-MNA-7P-NNNNN-NNNN 3 Phase 380V VFD Frequency Converter Motor Three Phase Drive 24*14*25cm

1 piece
MOQ
Rexroth VFC3610-5K50-3P4-MNA-7P-NNNNN-NNNN 3 Phase 380V VFD Frequency Converter Motor Three Phase Drive 24*14*25cm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: VFC 3610
Warranty: 24 Months, 12 Months
Type: Speed Driver
Certification: CE/ISO9001
Size: 24*14*25cm
Customized: NO
Control Mode: V/f
Rated Power: 5.5W
Nominal Voltage: 400V
Power Phase Number: 3
Product Name: Frequency Converter Drives
Input Voltage: 3p 400V
Brand: Rexroth
Rated Current: 12.7 A
Control Panel Type: Fixed LED
Basic Infomation
Certification: CE/ISO9001
Model Number: VFC 3610
Payment & Shipping Terms
Packaging Details: New original packaging
Product Description

A Variable Frequency Drive (VFD) is a type of motor controller that drives an electric motor by varying the frequency and voltage supplied to the electric motor. Other names for a VFD are variable speed drive, adjustable speed drive, adjustable frequency drive, AC drive, microdrive, and inverter.

There are many reasons why we may want to adjust this motor speed.

* Save energy and improve system efficiency
* Converting power in hybrid applications
* Match the speed of the drive to the process requirements
* Match the torque or power of a drive to the process requirements
Improve the working environment
Lower noise levels, for example from fans and pumps
* Reduce mechanical stress on machines to extend their lifetime
Reduce peak consumption to avoid peak-demand prices and minimize the motor size required
Bosch Rexroth is a German company with a long history.
Bosch Rexroth's variable frequency drives are an economical solution for dependable speed control and demand-oriented energy supply. They are suitable for a broad range of applications thanks to their scalability, compact design, and Multi-Ethernet and Open Core interface. Users can count on consistent and affordable performance with the easy-to-use VFC3610,5610 and EFC3610,5610 variable frequency drives.
Product Description
Rexroth Frequency Converter
VFC 3210
Rexroth VFC 3210 variable frequency drives In a compact design, the VFC 3210 has V/F control to provide better products and services.
It offers output power ranging from 0.4 to 4 kW. It supports side-by-side mounting, has a removable fan and is CE-certified, which proves to be a powerful product with safety, reliability, and ease of use.


Side by side mounting


Compact design


Smaller dimension


Superior performance

The high starting torque of 150 % 3 Hz and 100 % Hz 1.5. The capacity overload of 150 % 60 s.

Easy to operate

Built-in LED operating panel. Easy to operate and maintenance, removable fan, free cooling.

Stable & Reliable

Systematic safety standard and reliability test system. Complete converter protection.
Item No.
VFC3210 Frequency Converter Type
Rated Power/Current
Input
R912006807
Rexroth VFC3210-0K40-1P2-MNA-7P-NNNNN-NNNN
0.40 kW, 2.4 A


1P 200 VAC
R912006808
Rexroth VFC3210-0K75-1P2-MNA-7P-NNNNN-NNNN
0.75 kW, 4.1 A
R912006809
Rexroth VFC3210-1K50-1P2-MNA-7P-NNNNN-NNNN
1.50 kW, 7.3 A
R912006810
Rexroth VFC3210-2K20-1P2-MNA-7P-NNNNN-NNNN
2.20 kW, 10.1 A
R912006811
Rexroth VFC3210-0K40-3P4-MNA-7P-NNNNN-NNNN
0.40 kW, 1.3 A



3P 380 VAC
R912006812
Rexroth VFC3210-0K75-3P4-MNA-7P-NNNNN-NNNN
0.75 kW, 2.3 A
R912006813
Rexroth VFC3210-1K50-3P4-MNA-7P-NNNNN-NNNN
1.50 kW, 4.0 A
R912006814
Rexroth VFC3210-2K20-3P4-MNA-7P-NNNNN-NNNN
2.20 kW, 5.6 A
R912006815
Rexroth VFC3210-4K00-3P4-MNA-7P-NNNNN-NNNN
4.00 kW, 9.7 A
Rexroth Frequency Converter
VFC 3610
0.4...22 kW(Heavy-duty)

Rexroth VFC 3610 is an enhancement solution for small machinery applications and other V/F applications. 0.4...22 kW power output, 1.5 Hz/100 % and 3 Hz/150 % start-up torque, heavy duty/normal duty, etc.

Quick connectors


Bluetooth Adapter


DIN rail mounting


Item No.
VFC3610 Frequency Converter Type
Rated Power/Current
Input
R912005373
Rexroth VFC3610-0K40-1P2-MNA-7P-NNNNN-NNNN
0.40 kW, 2.4 A


1P 200 VAC
R912005374
Rexroth VFC3610-0K75-1P2-MNA-7P-NNNNN-NNNN
0.75 kW, 4.1 A
R912005375
Rexroth VFC3610-1K50-1P2-MNA-7P-NNNNN-NNNN
1.50 kW, 7.3 A
R912005376
Rexroth VFC3610-2K20-1P2-MNA-7P-NNNNN-NNNN
2.20 kW, 10.1 A
R912005377
Rexroth VFC3610-0K40-3P4-MNA-7P-NNNNN-NNNN
0.40 kW, 1.3 A








3P 380 VAC
R912005378
Rexroth VFC3610-0K75-3P4-MNA-7P-NNNNN-NNNN
0.75 kW, 2.3 A
R912005379
Rexroth VFC3610-1K50-3P4-MNA-7P-NNNNN-NNNN
1.50 kW, 4.0 A
R912005380
Rexroth VFC3610-2K20-3P4-MNA-7P-NNNNN-NNNN
2.20 kW, 5.6 A
R912005381
Rexroth VFC3610-3K00-3P4-MNA-7P-NNNNN-NNNN
3.00 kW, 7.4 A
R912005382
Rexroth VFC3610-4K00-3P4-MNA-7P-NNNNN-NNNN
4.00 kW, 9.7 A
R912005095
Rexroth VFC3610-5K50-3P4-MNA-7P-NNNNN-NNNN
5.50 kW, 12.7 A
R912005096
Rexroth VFC3610-7K50-3P4-MNA-7P-NNNNN-NNNN
7.50 kW, 16.8 A
R912005097
Rexroth VFC3610-11K0-3P4-MNA-7P-NNNNN-NNNN
11.0 kW, 24.3 A
R912005098
Rexroth VFC3610-15K0-3P4-MNA-7P-NNNNN-NNNN
15.0 kW, 32.4 A
R912005383
Rexroth VFC3610-18K5-3P4-MNA-7P-NNNNN-NNNN
18.5 kW, 39.2 A
R912006277
Rexroth VFC3610-22K0-3P4-MNA-7P-NNNNN-NNNN
22.0 kW, 45.0 A
Rexroth Frequency Converter
VFC 5610
0.4...315 kW(Heavy-duty)

Rexroth VFC 5610 is a high performance vector frequency converter for high-end machinery applications. Power range of 0.4 - 315 kW, start-up torque of 0.5 Hz/200 %, torque control, speed control options, high control accuracy, fast response, etc.

Compact design

Modularized design
Side by side mounting capability to save cabinet space.

Easy to use

Standard equipped LED pluggable, Bluetooth Adapter optional for easy connection by mobile. Quick Start Menu for easy commissioning.

Powerful

Normal duty/heavy duty operation. VFC 5610 110 kW and above have built-in DC reactor High performance vector and torque technology (VFC 5610).
Item No.
VFC5610 Frequency Converter Type
Rated Power/Current
Input
R912005384
Rexroth VFC5610-0K40-1P2-MNA-7P-NNNNN-NNNN
0.40 kW, 2.4A


1P 200 VAC
R912005385
Rexroth VFC5610-0K75-1P2-MNA-7P-NNNNN-NNNN
0.75 kW, 4.1 A
R912005386
Rexroth VFC5610-1K50-1P2-MNA-7P-NNNNN-NNNN
1.50 kW, 7.3 A
R912005387
Rexroth VFC5610-2K20-1P2-MNA-7P-NNNNN-NNNN
2.20 kW, 10.1 A
R912005388
Rexroth VFC5610-0K40-3P4-MNA-7P-NNNNN-NNNN
0.40 kW, 1.3 A










3P 380 VAC
R912005389
Rexroth VFC5610-0K75-3P4-MNA-7P-NNNNN-NNNN
0.75 kW,2.3 A
R912005390
Rexroth VFC5610-1K50-3P4-MNA-7P-NNNNN-NNNN
1.50 kW, 4.0 A
R912005391
Rexroth VFC5610-2K20-3P4-MNA-7P-NNNNN-NNNN
2.20kW, 5.6 A
R912005392
Rexroth VFC5610-3K00-3P4-MNA-7P-NNNNN-NNNN
3.00 kW, 7.4 A
R912005393
Rexroth VFC5610-4K00-3P4-MNA-7P-NNNNN-NNNN
4.00 kW, 9.7 A
R912005103
Rexroth VFC5610-5K50-3P4-MNA-7P-NNNNN-NNNN
5.50 kW, 12.7 A
R912005104
Rexroth VFC5610-7K50-3P4-MNA-7P-NNNNN-NNNN
7.50 kW, 16.8 A
R912005105
Rexroth VFC5610-11K0-3P4-MNA-7P-NNNNN-NNNN
11.0 kW, 24.3 A
R912005106
Rexroth VFC5610-15K0-3P4-MNA-7P-NNNNN-NNNN
15.0 kW, 32.4 A
R912005394
Rexroth VFC5610-18K5-3P4-MNA-7P-NNNNN-NNNN
18.5 kW,39.2 A
R912005966
Rexroth VFC5610-22K0-3P4-MNA-7P-NNNNN-NNNN
22.0 kW, 45.0 A
R912005967
Rexroth VFC5610-30K0-3P4-MNA-7P-NNNNN-NNNN
30.0 kW, 60.8 A
R912005968
Rexroth VFC5610-37K0-3P4-MNA-7P-NNNNN-NNNN
37.0 kW, 73.7A
R912005969
Rexroth VFC5610-45K0-3P4-MNA-7P-NNNNN-NNNN
45.0 kW,89.0 A
R912005970
Rexroth VFC5610-55K0-3P4-MNA-7P-NNNNN-NNNN
55.0 kW, 108 A
R912005971
Rexroth VFC5610-75K0-3P4-MNA-7P-NNNNN-NNNN
75.0 kW, 147 A
R912005972
Rexroth VFC5610-90K0-3P4-MNA-7P-NNNNN-NNNN
90.0 kW, 176 A
R912007196
Rexroth VFC5610-110K-3P4-MNA-7P-NNNNN-NNNN
110kW,211A






3P 380 VAC
Custom

R912007197
Rexroth VFC5610-132K-3P4-MNA-7P-NNNNN-NNNN
132 kW, 253A
R912007198
Rexroth VFC5610-160K-3P4-MNA-7P-NNNNN-NNNN
160 kW, 303A
R912007686
Rexroth VFC5610-185K-3P4-MNA-7P-NNNNN-NNNN
185 kW, 351A
R912007687
Rexroth VFC5610-200K-3P4-MNA-7P-NNNNN-NNNN
200 kW, 380A
R912007688
Rexroth VFC5610-220K-3P4-MNA-7P-NNNNN-NNNN
220 kW, 411A
R912007689
Rexroth VFC5610-250K-3P4-MNA-7P-NNNNN-NNNN
250 kW, 467A
R912007690
Rexroth VFC5610-280K-3P4-MNA-7P-NNNNN-NNNN
280 kW, 522A
R912007691
Rexroth VFC5610-315K-3P4-MNA-7P-NNNNN-NNNN
315 kW, 588A
VFC & EFC Applications

HVAC——Fans, pumps, air conditioning

Energy savings calculator Life time reminder Speed tracing Dry pump protection Pump cascading

Textile and Dyeing——Heat setting stenter, twister, air-flow spinning

Smart cooling concept Import PCBA coating Low voltage ride-through DC generatrix
