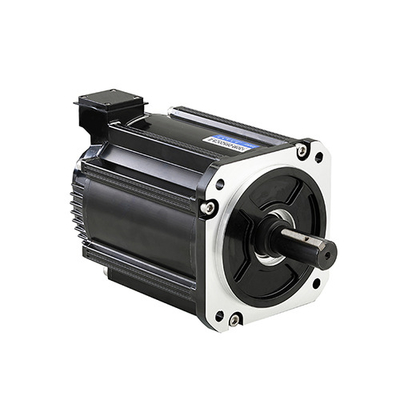

Totally Enclosed Flat Servo Motor Dc 48V 72 Volt 1 Kw 2.4Kw 2 Hp Servo Motor For Cnc Lathe Injection Molding Machine Sewing Machines Industrial

1.0 set
MOQ
Totally Enclosed Flat Servo Motor Dc 48V 72 Volt 1 Kw 2.4Kw 2 Hp Servo Motor For Cnc Lathe Injection Molding Machine Sewing Machines Industrial
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Model Number: 130mm DC Servo Motor
Usage: AGV/Robot/Logistics Automation/New Energy Field/Movement Axis/Laser Equipment/Medical Equqipment/Industrial Machine
Type: SERVO MOTOR
Torque: 5N.m-19N.M
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Totally Enclosed
Speed(RPM): 1500-3100rpm/Custom
Continuous Current(A): 27A-126.5A
Efficiency: IE 2
Motor Type: 130mm DC Servo Motor
Rotation Direction: CCW
Voltage(V): 24v, 48V, 60v, 72v
Time Rating: Continuous
Drive Method: Direct Drive
Mouting: Flange Method
Insulation Resistance(MΩ): DC500V, >20MΩ
Feedback Component: 2500PPR
Ambient Humidity: 20~80% No Condensation
Vibration Class: F
Basic Infomation
Model Number: 130mm DC Servo Motor
Payment & Shipping Terms
Packaging Details: According to the size of the motor for safe packing. Normal packing:1pcs with 1 inner carton and 1 outside carton
Supply Ability: 10000 Piece/Pieces per Month
Product Description
Feature:
A. High power range from 20W to 10KW
B. Dia: 40mm-220mm
C. Easy for speed & direction adjustment
D. Rich stock and fast shipping time in 10 working days
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller
Specification
Rated Output(Kw):
3
Number of Poles：
10
Rated Voltage(V)：
DC48
Vibration Class ：
F
Rated Speed(rpm)：
3000
Max. Speed(rpm)：
3200
Rated Current(A)：
80±10%
Instantaneous Max. Current(A):
160±10%
Rated Torque(N.m)：
10
Instantaneous Peak Torque(N.m):
20
Line Resistance(Ω):
7.6±10%(25℃)
Line Inductance(mH):
±10%
Line Back EMF.(V/krpm)：
3.8±10%
Torque Coefficient(N.m/A):
0.13±10%
Rotor Moment of Inertia(Kg.m2×10-4):
15.9±10%
Feedback Component：
Incremental
Encoder, 2500PPR
Static Torque（N.m）：
-
Rotation Direction ：
CCW
Insulation Resistance(MΩ):
DC500V，>20MΩ
Noise(dB)：
≤60dB，None Special Noise
Time rating ：
Continuous
Vibration Class ：
V 15
Ambient Temperature ：
0～+40℃
Ambient Humidity ：
20～80% No Condensation
Excitation：
Permanent Magnet
Mouting ：
Flange Method
Drive Method ：
Direct Drive
Enclosure ：
Totally Enclosed, Self-cooled, IP65(except for shaft opening ).
Kindly remind: As different customers may need different motor parameter for fitting your equipment. If below motor can't fit your need, please kindly send inquiry to us with information for rated power or torque,rated speed, and rated voltage for our new size drawing making for you. CLICK HERE to contact me. Thanks a lot!

Dimensions (Unit: mm )
Mounting screws are included with gear head.
130MM DC Servo Motor Size Dimensions
Recommend Products
Main Products
Company Profile
DMKE motor is a specialized motor company founded in Y2009 by Haibing Jian,who boats 18 years of experience in the motor and controller industry. Our company located in Panyu,Guangzhou,China.

Our main products are brushless dc motor, brushless controller, dc servo motor and controller, planetary gear motors, worm gear motors, brush dc motor and AC motor. They are widely used in AGV, RGV, robots, barrier gate, lifting equipment, cleaning machines, medical equipment, cafe machinery, packing machinery, amusement game machines, automobiles, industrial equipment etc.

With a plant area of 4000 square meters, we have the independent design and development capabilities and strong technical force,with an annual output of more than 1 million units. We can accept OEM motor and controller based on customers’ need.

Our Advantages
FAQ
Q1: What kind motors you can provide?
A1: For now, we mainly provide Brushless DC Motor, DC Servo Motor, Drive Dheel, Servo Electric Cylinder, Gearbox, Motor Controller, with diameter range from 16 to 220mm, and power range from 5W to 20KW.
Q2: Are you motors reversible?
A2: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.
Q3: Is it possible for you to develop new motors if we provide the tooling cost?
A3: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make our evaluation. Welcome to click here to send your requirements.
Q4: What is your after-sales services?
A4: A) Free maintenance within 12 months guarantee, lifetime consultant.
       B) Professional solutions in installation and maintenance.
