Home /Products/AC Servo Motor/RSMA-M06J1330A 220V 3000rpm -5000rpm AC Servo Motor 400W 1.27NM RSMA-M06J1330A

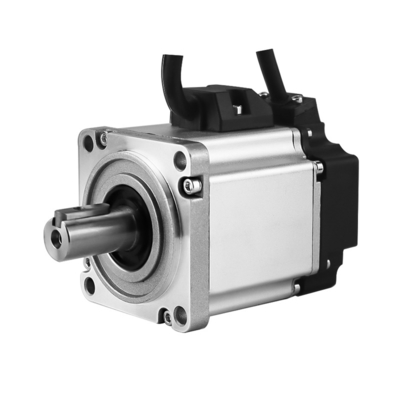

RSMA-M06J1330A 220V 3000rpm -5000rpm AC Servo Motor 400W 1.27NM RSMA-M06J1330A

1 Piece
MOQ
$90.00(1 - 9 Pieces) $85.50(>=10 Pieces)
Price
RSMA-M06J1330A 220V 3000rpm -5000rpm AC Servo Motor 400W 1.27NM RSMA-M06J1330A
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year
Model Number: RSMA-M06J1330A
Type: SERVO MOTOR
AC Voltage: 208-230 / 240 V
Name: AC SERVO MOTOR
Motor Length: 98mm
Torque: 1.27NM
Rotor Inertia: 0.26X10^(-4)
Shaft Diameter: 13.8mH
Rated Voltage: 220V
Rated Power: 400W
Rated Speed: 3000rpm
Maximum Speed: 5000rpm
Winding Resistance: 7.2
Basic Infomation
Model Number: RSMA-M06J1330A
Payment & Shipping Terms
Packaging Details: Packaging Details:Standard Export Cartons Port:Shenzhen, Hongkong Lead Time :Depends on the Order Quantity
Product Description
Product Description
General specification
Number of pole pairs
5
Environment humidity
<90%>RH (no condensation)
Ambient temperature
-20℃—+50℃
Insulation resistance
F(155℃)
Withstand voltage
500VAC for one minute
Radial runout
0.06Max.(450g-load)
Encoder line number
17bit magnetic encoder(23bit optical encoder, multiturn absolute encoder optional)
Servo motor parameters
Model
Unit
RSMA-M06J0630A
RSMA-M06J1330A
RSMA-M08J2430A
RSMA-M08J3230A
Rated voltage (V)
V
220
220
220
220
Rated power (W)
W
200
400
750
1000
Rated torque (N.M)
N.M
0.64
1.27
2.39
3.2
Peak speed (RPM)
RPM
5000
5000
5000
5000
Rated speed (RPM)
RPM
3000
3000
3000
3000
Rated current (A)
A
1.1
3.1
4.0
5.6
Back EMF(V/1000rpm)
V/1000rpm
26
35
36.6
35.6
Resistance (ohm)
ohm
10.63
7.2
1.65
1.1
Inductance (mH)
mH
17.1
13.8
7.4
5.2
Rotor inertia (
kgm^2 x 10 ^-5)
kgm^2 x 10 ^-4
0.17
0.26
1.71
2.11
Body length L
mm
80
98
113
128
