Home /Products/Stepper Motor Drive/PUT 7.5A Stepper Motor NEMA 34 Drivers 24-75Vdc NEMA 34 Stepper Motor Drive SR8--Plus SR8-Plus

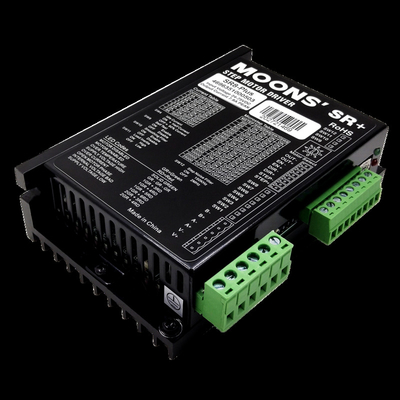

PUT 7.5A Stepper Motor NEMA 34 Drivers 24-75Vdc NEMA 34 Stepper Motor Drive SR8--Plus SR8-Plus

1 Piece
MOQ
$75.00(1 - 49 Pieces) $72.00(50 - 99 Pieces) $69.00(100 - 499 Pieces) $66.00(>=500 Pieces)
Price
PUT 7.5A Stepper Motor NEMA 34 Drivers 24-75Vdc NEMA 34 Stepper Motor Drive SR8--Plus SR8-Plus
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 12 Months, 12 Months
Model Number: SR8-Plus
Product Name: MOONS 7.5A Stepper Motor Nema 34 Drivers 24-75Vdc
Voltage Range: 24-75VDC
Current Range: 2.4-7.8A
Under Voltage Protection: 20VDC
Phase: 2 Phase
Protection: Over Voltage/under Voltage/over Temp/ Over Current/open Winding
Dimensions: 118mm*75.5mm*33mm
Weight: 0.31kg
Certification: CE RoHS
Basic Infomation
Certification: CE RoHS
Model Number: SR8-Plus
Payment & Shipping Terms
Packaging Details: Exported Box+Anti-drop bubble
Product Description

MOONS 7.5A stepper motor nema 34 drivers 24-75Vdc nema 34 stepper motor drive SR8--Plus

Products detail

Drive Specifications

Parameter Unit Value
phase 2
Supply Voltage 24-75 VDC
Control Modes Pulse Mode
Output Current A 2.4-7.8
Digital Inputs 3
Digital Outputs 1
Encoder Feedback NO
Operating Temp. ℃ 0-40℃
Approvals CE,RoHS
IP Rating IP20
Weight kg 0.4

Dimension (Units: mm)

Packaging & Shipping

Company Informtion

FAQ

1.Factory or Agent?
We are Agent, but have professional R&D team as introduced in company information.

2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-20 days.

3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.

4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.

5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
