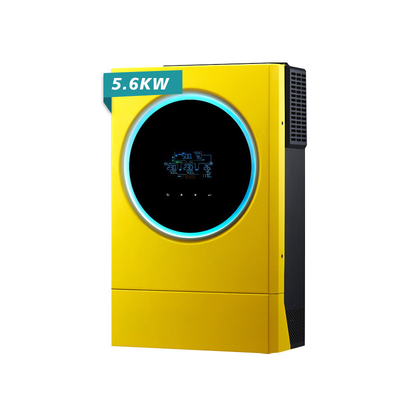

Hybrid Solar Inverter Charger Times Hot Sale High Quality 5.6KW 120A Power Off-Grid and On Grid Integrated Inverter Hybrid Solar 5.5kw Inverter

2.0 sets
MOQ
Hybrid Solar Inverter Charger Times Hot Sale High Quality 5.6KW 120A Power Off-Grid and On Grid Integrated Inverter Hybrid Solar 5.5kw Inverter
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: TP-I003
Input Voltage: 120 VDC ~ 430 VDC
Output Voltage: 220/230/240 VAC
Output Current: 15.6A/24.3A
Output Frequency: 50/60HZ Auto
Output Type: Single
Size: 140 X 295 X 468mm
Type: DC/AC Inverters
Inverter Efficiency: 96%
Certificate: CE
Warranty: 1 Year
Weight: 14kg
Product Name: High Frequency Solar Inverter
Application: Solar Power System Home
Battery Type: Lithium Battery
Inverter Type: Hybrid Solar Power Inverter
Rated Power: 3000VA/2400W
Logo: Accept Customization
Waveform: Pure Sine Wave
Controller Type: PWM
Feature: Hybrid Solar Inverter Charger
Keyword: Inverter Solar
Basic Infomation
Certification: CE
Model Number: TP-I003
Payment & Shipping Terms
Packaging Details: Carton
Product Description
Product Description
Specific parameters
Modle
TP-I003A
TP-I003B
Stage
1-phase input/1-phase output
Maximum PV input power
 5000W
6000W
Rated output power
3600W
5600W
Maximum charging power
5000W
6000W
Grid-connected operation
Photovoltaic input(DC)
Nominal DC Voltage/Maximum DC Voltage
360 VDC/500 VDC
360 VDC/450 VDC
Start-up voltage/initial feed voltage
110 VDC/120 VDC
110 VDC/120 VDC
MPP voltage range
120VDC~430VDC
Number of MPP trackers/maximum input
1/18A
1/27A
Grid output(AC)
Nominal output voltage
220/230/240VAC
Output voltage range
184-264.5 VAC or 195.5-253 VAC(optional)
Nominal output current
 15.6A
24.3A
Power factor
>0.9
Efficiency
Maximum ConversionEfficiency(DC/AC)
96%
Off-grid operation
AC input
AC starting voltage/auto-restart voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VACor170-280VAC
Maximum AC input current
40A
Photovoltaic input(DC)
Maximum DC voltage
500 VDC
450 VDC
MPP voltage range
120VDC~430VDC
Number of MPP trackers/maximum input
 1/18A
 1/27A
Battery Mode Output(AC)
Nominal output voltage
220/230/240VAC
Output waveform
Pure sine wave
Efficiency(DCto AC)
93%
93%
Mixed operation
PV input(DC)
Nominal DC Voltage/Maximum DC Voltage
360VDC/550 VDC
360VDC/450 VDC
Start-up voltage/initial feed voltage
110VDC/120VDC
MPP voltage range
120VDC~430VDC
Number of MPP trackers/maximum input
1/18A
1/27A
Grid output(AC)
Nominal output voltage
220/230/240VAC
Output voltage range
184-264.5 VAC or 195.5-253 VAC(optional)
Nominal output current
15.6A
 24.3A
AC input
AC starting voltage/auto-restart voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VACor170-280VAC
Maximum AC input current
40A
Battery Mode Output(AC)
Nominal output voltage
220/230/240VAC
Efficiency(DC to AC)
93%
Charger
Rated DC voltage
48VDC
48VDC
Maximum solar charging current
100A
120A
Maximum AC Charge Current
100A
120A
Maximum charging current
100A
120A
General
PHYSICAL
Dimensions.DxWxH(mm)
140x295x468
Net weight(kgs)
11
12
Interface
Parallel function Support,9 units
Communication port
USB/RS232/RS485/WIFI/Drv-contact
Surroundings
Humidity
 0~90% RH(non-condensing)
Operating temperature
 -10 to 50℃
Product Details
Company Profile
Exhibition
Package & Shipping
Contact us
FAQ
Q: Are you a factory or a trading company? A: We are factory and trading company, over 6 years experience, welcome to visit. Q: Is sample order acceptable? A:Yes, for all batteries or battery packs, sample orders for testing quality is reasonable and acceptable. Q: Is your battery quality approved? A: Yes, we guarantee that all cells are 100% original from various big brands.And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection before shipment. Q: What is your lead time if I placed an order? A: For all products in stock, our lead time is within 2 working days after payment received. The sample needs 5-10 days, mass production time needs 3-5weeks, it depends on order quantity. Q: Is it OK to print my logo on the product? A: Sure, please inform us formally before our production and confirm the design firstly based on our sample. Q:How is your technical support? A: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary. Q: What should I do, if I don't have export experience or I have no cargo agent? A: We have reliable forwarder agent and cooperating shipping company which can ship products to you by sea.
