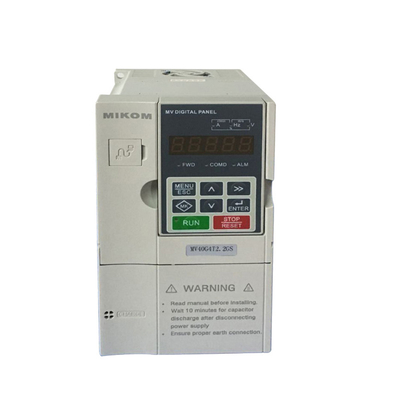

0.75KW General Vector Open Loop Inverter VFD 180.00*105.00*120.00mm

1 piece
MOQ
0.75KW General Vector Open Loop Inverter VFD 180.00*105.00*120.00mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: MV10G-4T0.75GS
Warranty: 18 Months
Type: AC-DC-AC Inverters
Certification: CE
Size: 180.00*105.00*120.00mm
Customized: Yes
Control Mode: SVC,V / F
Rated Power: 0.75kw
Nominal Voltage: 380±15%
Power Phase Number: 3
Installation Dimensions: 94.00*169.00mm
Output Frequency: 0~400HZ
Speed Adjustable Range: 1:200
Run Mode: Speed Way
Starting Torque: 0.25HZ Can Output 150% Rated Torque
Operation Mode: Speed Mode
Ommunication Interface: RS485
Mounting Aperture: 6.00mm
Input Frequency: 50Hz/60Hz,±5%
Output Type: Single, Triple
Basic Infomation
Certification: CE
Model Number: MV10G-4T0.75GS
Payment & Shipping Terms
Packaging Details: 215*140*186mm 1.9kg Box-packed
Supply Ability: 2000 Piece/Pieces per Month
Product Description
Product Advantage
◆Advanced vector control algorithm, the low frequency starting torque is big, 0.25HZ reach 150% rated torque;
◆Built-in PID function, constitute a closed loop control system, PID with sleep wake up function;
◆By built-in a simple PLC function automatically run multistage speed, or external control terminal realize
16 period of speed operation;
◆Built-in automatic torque compensation function, slip compensation function;
◆Support for multiple frequency given way, digital given, analog given, PID given, communication given, etc.,
◆Through the terminal keyboard free switch a given way;
◆Common DC bus;
◆Rich programmable input/output terminals, meet the demand of customers a variety of control;
◆Can realize the instantaneous power failure non-stop, and have the start function of rotate speed tracking,
stop quickly to start again;
◆The unique address mapping function, the user to save parameters group and keyboard copy function;
◆Can provide many kinds of fault protection function, over current, over voltage, lack of phase, overload, etc;
Technical Features
Power range: single-phase:0.4KW~2.2KW; three-phase:0.75KW~400KW
Output frequency: 0~400HZ
Speed adjustable range: 1:200
Control mode: No PG open loop vector control and V/F control
Run mode:Speed way
Starting torque: 0.25HZ can output 150% rated torque
Overload capacity: 150%1m;180%10s;200%1s
Protection function: over current protection, over-voltage protection, under-voltage protection, overload protection, overheating protection, etc
Basic interface: 2 road analog input;2 road analog output; 8 road multi-function input terminals; 2 road
multi-function output terminals; 1 road relay output
Communication interface: Standard RS485 interface hardware
Industry application
Numerical control lathe, grinding machine, drilling machine, textile machinery, printing and dyeing equipment, packaging and printing machinery, processing machinery, paper production line, fan, water pump, three-dimensional warehouse, ceramic machinery,glass machinery, etc.
Item
Specifications

Input
Rated voltage, frequency
single-phase:220V±15%,50Hz/60Hz,frequency:±5%
three-phase:380V±15%,50Hz/60Hz,frequency:±5%
Rated current
Refer to the rating (Chart 2-2)


Output
Voltage
0～input voltage
Frequency
0～400Hz
Current overload capacity
150% Rated current for 1min,180% Rated current for 10s，200% Rated current for 1s






















Standard
functions
Modulation Mode
The magnetic flux vector PWM modulation
Motor type
Induction motors
Speed range
Closed-loop vector (asynchronous)1:5000
Open-loop vector 1:200 V/F1:100
Startup torque
Closed-loop vector (asynchronous)0Hz 180%
Open-loop vector 0.25Hz 150% V/F0.5Hz 150%
Speed stability
accuracy
Closed-loop vector (asynchronous)0.02% Open-loop vector 0.2% V/F0.5%
Velocity pulsation
Closed-loop vector (asynchronous)0.1% Open-loop vector 0.3%；V/F0.5%
Frequency accuracy
Digital setting: Max frequency×±0.02%；Analog setting: Max frequency×±1%
Torque boost
Fixed boost Customized boost 0.1%–30.0%
V/F curve
Straight-line curve, 4 kinds of users set V/F curve,A variety of torque characteristic curve
Ramp mode
Two kinds of way:Straight-line ramp、S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.1～3600s
DC braking
DC braking frequency:0.00～60.00Hz Braking time: 0.1～30.0s
Jog
Jog frequency range:0.10～60.00Hz
Jog acceleration/deceleration time:0.1～60.0s, Jog time interval can be set
Multistage speed operation
Through the built-in PLC control or terminal control 16 segment speed operation
Onboard PID
It realizes process-controlled closed loop control system easily.
Automatic energy saving operation
Automatic optimization control according to the load situation, achieve energy-saving operation
Auto voltage
regulation(AVR)
It can keep constant output voltage automatically when the mains voltage changes.
Speed tracking start function
Rotation of motor no impact smooth start
Automatic current limiting
Current limit automatically during the operation, prevent frequent over-current fault tripping
Textile pendulum frequency
Textile pendulum frequency control, the realization of center frequency adjustable frequency function
Fixed-length control
Through the terminal count input function, the realization of fixed length control
Busbar voltage over-voltage suppression
Real-time dynamic control of busbar voltage, prevent the frequent overvoltage fault tripping
Power dip ride
through
The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.








Run control
Bind function
Bind the run command channel and the frequency of a given channel, synchronous switch
Run the command channel
Operation panel control command channel、terminal control command channel、Modbus/MXLink communication command channel. Can switch
through a variety of ways.
Given frequency channel
Keybord setting,analog voltage,Analog current setting, simple PLC setting, Multistage speed setting, process of the closed loop
setting、Modbus/MXLink communications setting. Can switch through a variety of ways.
Protection mode
Motor short-circuit detection at power-on, input/output phase loss protection, overcurrent protection, overvoltage protection,
undervoltage protection, overheat protection and overload protection.
Auxiliary
frequency source
It can implement fine tuning of auxiliary frequency and frequency synthesis.








Peripheral interface
Analog input
3 roads analog signal input
2 roads 0～10V/4～20mA,1 road differential input -10～+10V
Analog output
2 roads analog signal output
0～10V/4～20mA, Can realize the set frequency, output frequency and so on the analog output.
Digital input
8-way multi-function input terminals,X8/DI high-speed pulse input terminals, maximum support (50KHz)
Digital output
2 ways multifunctional output terminals,Y2/DO high-speed pulse output terminals, maximum support (50KHz)
2 ways relay output
R relay output MA NC,MB NO,MC COM
T relay output M1 NC,M2 NO,M3 COM
Configurable PLC card
6 ways input terminals, 4 ways output terminals; basic instruction processing speed is 0.084 us/step, comprehensive instruction
processing speed for step 1 k/ms, program capacity of 12 K steps
Communication
485 communication
Standard 485 difference signal, support the Modbus protocol and MXLink protocol




Panel
LED display
It can display a set frequency, output frequency, output voltage, output current and other parameters
Key lock to choose
By setting the buttons can change some or all of the lock, in order to prevent wrong operation
Multifunctional MK key
Can realize point, free downtime, running direction switch, menu to switch, command channel switch
Outer join
For 485 interface between panel and control panel, built-in voltage chip, more than 100 m distance connection can be realized





Other
Installation
location
Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt.
Ambient
temperature
-10℃～50℃,de-rated if the ambient temperature is more than 40℃
Altitude
Lower than 1000 m
Humidity
5%～95%RH, without condensing
Vibration
Less than 5.9m/s2(0.6g)
Storage
temperature
-40℃～+70℃
