Home /Products/Motor Frequency Inverter/Cost Effective 7.5KW 380V Fan High Performance Inverter For Motor Speed ​​Control

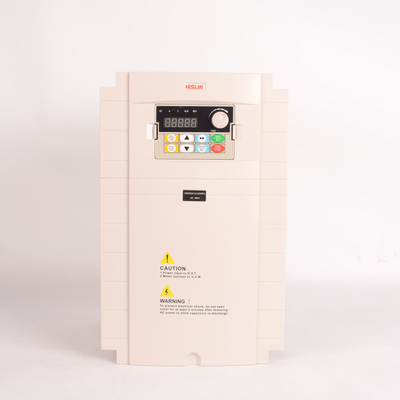

Cost Effective 7.5KW 380V Fan High Performance Inverter For Motor Speed ​​Control

1 Piece
MOQ
$109.00(>=1 pieces)
Price
Cost Effective 7.5KW 380V Fan High Performance Inverter For Motor Speed ​​Control
Features Gallery Product Description Request A Quote
Features
Specifications
Network: RS485
Customized Support: Accepted
Model Number: HS710
Type: AC-DC-AC Inverters
Output Type: Triple
Output Current: 16A
Output Frequency: 0-3000HZ
Size: 249*143*177MM
Weight: 3.5KG
Certificate: CE ISO9001
Product Name: VFD
Color: White
Application: Fan
Warranty: 12 Months
Protection: Overload
Output Waveform: Sine Wave
Display: LED
Inverter Type: Ac -Dc-Ac Frequency Inverter
OEM: Accepted
Brand: HISUN
Basic Infomation
Certification: CE ISO9001
Model Number: HS710
Payment & Shipping Terms
Packaging Details: 1 pcs inverter is packed in a plastic bag, which is in a carton box.
Supply Ability: 500 Piece/Pieces per Day
Product Description
Product Description

UNIVERSAL HIGH-PERFORMANCE VECTOR INVERTER
HS710 Series Frequency Inverter is a multi-functional and low-noise voltage vector & V/F control. Universal high-performance vector inverter developed and produced by Haishang Inverter.It realizes the fast response and accurate control of the torque, carries on the speed regulation movement with the extremely high control precision, increases the motor parameter automatic tuning, the automatic control and the torque control on-line switch,the torque tracking.It has built-in PID controller, simple PLC, 17 kinds of fault monitoring, rich I/O terminal and a variety of speed setting methods, which can meet the requirements of various loads on the drive control. Standard MODBUS communication protocol . Easy to achieve the communication between PLC,IPC and other industrial equipments.
Product Paramenters
Name
High Performance Universal VFD
Model
HS710
Power
0.75KW-500KW
Input
220V/380V±20%    50-60Hz
Output
0-240V/0-440V     0-3000Hz
Size
151*100*133/215*120*154MM
Model
Power
Input
Power
Source
Output
Voltage
Output
Frequency
Output
Current(A)
Overall Dimension  (H*W*D/MM)
Net Weight (KG)
710-0.75G1
0.75KW
Single-phase AC 220-240V
50Hz-60Hz
Three-phase AC 0-240V
0-3000Hz
4
151*100*133
1.1
710-1.5G1
1.5KW

7
1.1
710-2.2G1
2.2KW
9.6
1.1
710-4.0G1
4.0KW
Single-phase/ Three-phase AC 220-240V
50Hz-60Hz
Three-phase AC 0-240V
17
215*120*154
2.8
710-5.5G1
5.5KW
25
2.8
710-0.75G3
0.75KW
Three-phase AC 380-440V
50Hz-60Hz
Three-phase AC 0-440V
0-3000Hz
2.1
151*100*133
1.1
710-1.5G3
1.5KW


3.8
1.2
710-2.2G3
2.2KW
5.1
1.2
710-4.0G3
4.0KW
8.5
215*120*154
2.05
710-5.5G3
5.5KW
13

2.05
710-7.5G3
7.5KW
16
249*143*177
2.9
710-11G3
11KW
24
3.0
710-15G3
15KW
32
320*205*205
5.8
710-18.5G3
18.5KW
36
5.8
710-22G3
22KW
44
5.8
710-30G3
30KW
58
408*288*210
10.6
710-37G3
37KW
70
10.6
710-45G3
45KW
90
510*320*248
23
710-55G3
55KW
110
23
710-75G3
75KW
152
655*377*267
35
710-90G3
90KW
174
37
710-110G3
110KW
205
37
710-132G3
132KW
253
750*495*325
60
710-160G3
160KW
304
63
710-185G3
185KW
340
63
710-200G3
200KW
380
1005*632*440
117
710-220G3
220KW
426
117
710-250G3
250KW
465
117
710-280G3
280KW
520
120
710-315G3
315KW
585
1250*800*450
174
710-355G3
355KW
650
174
710-400G3
400KW
725
179
710-450G3
450KW
820
181
710-500G3
500KW
930
181
Installation Instructions
3-phase TO 3-phase：HS710 series VFD Three-phase 380Vinput & Three-phase 380V output
VFD drive motor control methods are V/F & Voltage Vector & Current Vector.
The IBGT selected for this series of VFD is IGBT Module.

1-phase TO 3-phase：HS710 series VFD Single-phase 220V input & Three-phase 220V output
VFD drive motor control methods are V/F & Voltage Vector.
The IBGT selected for this series(0.75KW,1.5KW,2.2KW) of VFD is IPM.
The IBGT selected for this series(4.0KW,5.5KW) of VFD is IGBT Module.
1-phase TO 3-phase(Voltage-increase)：HS710 series VFD Single-phase 220V input & Three-phase 380V output Equipment input side connected to single-phase power supply,Equipment output side connected to three-phase motor.
Company Profile

Anhui Haishang Frequency Conversion Technology Co., Ltd., established in 2008, is a high-tech enterprise specializing in the R & G, production, sales and technical service of industrial frequency converters. Under the leadership of Haishang spirit of "All rivers run into sea, sincerity and integrity", after more than ten years of hard work, the company has a complete headquarters office center, production base, research and development center, storage center, and mature product research and development teams, manufacturing The team and technical support team laid a solid foundation for Hisun's wings to take off.
As a key high-tech enterprise supported by the government, Haishang Company has passed ISO9001: 2015 quality system certification and EU CE certification; it has won honors such as the National Innovation Fund, high-tech research subsidies, product innovation awards, and most investment value awards. After continuous R & D investment, Haishang products have developed into three series and more than ten special planes, and obtained 5 invention patents and more than 30 utility model patents. Products can meet the needs of various types of machinery supporting, system integration and industrial applications. It has been widely used in industries such as cement, papermaking, machine tools, textiles, metallurgy, lifting, oil fields, plastics, chemicals, and municipalities.
Haishang's marketing and service outlets are all over the country and overseas. It already has 15 domestic offices, 2 foreign offices, more than 500 domestic distributors, and 5 foreign agents. The products have been exported to Europe, America, Africa, And Central Asia, Southeast Asia. The company has professional pre-sales, sales and after-sales technical service teams to provide customers with professional services throughout the process. While winning customers 'recognition with high-quality products, we also gain customers' trust with high-quality services.
Certifications
Packaging & Shipping
FAQ
1. Q: Why do you select our Inverter?
A: Top manufacturer of developing and manufacturing of Frequency Inverter, OEM
solution.
12 months warranty, and provide English speaking engineers online or onsite
service.
Passed ISO90001, CE certificates.
2. Q: I need your price list of all your products, do you have a price
list ?
A: We do not have a price list of all of our products.Because we have so many items,and
it's impossible to mark all of their price on a list.And the price are always changing
because of the producing cost.If you want to check any price of our products, please
feel free to contact us.We will send offer to you soon!
3. Q：Do you support customization?
A：Yes, we welcome customized products.We can meet the needs of customers
customized because we have strong technical force .
4. Q: Can I become an Agent / Dealer?
A: Welcome! But please let me know your Country/Area fisrt,We will have a check and
then talk about this.If you want any other kind of cooperation,do not hesitate to
contact us.
Your Inquiry will be highly appreciated!
