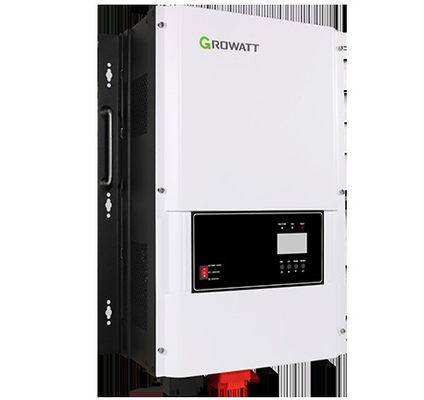

Home /Products/Motor Frequency Inverter/Inverter 12KW Solar Power System Home Integrated Growatt MPPT Solar Charge Controller Off Grid PV Solar Power 120/240Vac Split Phase Output

Inverter 12KW Solar Power System Home Integrated Growatt MPPT Solar Charge Controller Off Grid PV Solar Power 120/240Vac Split Phase Output

1 set
MOQ
$1,900.00(1 - 9 sets) $1,850.00(10 - 49 sets) $1,780.00(>=50 sets)
Price
Inverter 12KW Solar Power System Home Integrated Growatt MPPT Solar Charge Controller Off Grid PV Solar Power 120/240Vac Split Phase Output
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: Growatt SPF 8000T DVM
Input Voltage: 240VAC
Output Voltage: 104-110-115-120/208-220-230-240VAC(optional)
Output Current: 100A
Output Frequency: 50Hz/ 60Hz ±0.3Hz
Output Type: Single
Size: 380/650/225mm
Type: DC/AC Inverters
Inverter Efficiency: >85%
Certificate: CE/RHOS/IEC
Warranty: 2 Years, 2 Years
Weight: 75KG
Product Name: Growatt SPF 12000T DVM
Application: Solar Power System Home
MPPT Efficiency: >98%
Battery Type: Lithium/Lead-acid
Waveform: Pure Sine Wave/ Same As Input(bypass Mode)
Transfer Timev: 10ms(max)
Display: LCD
Basic Infomation
Certification: CE/RHOS/IEC
Model Number: Growatt SPF 8000T DVM
Payment & Shipping Terms
Packaging Details: In carton or customized wooden box.
Supply Ability: 10000 Set/Sets per Month
Product Description
Datasheet
SPF 12000T DVM
Battery Voltage
48VDC
Battery Type
Lithium/Lead-acid
INVERTER OUTPUT
Rated Power
12KW
Surge Rating
36KW
WaveForm
Pure sine wave/ same as input（bypass mode）
Nominal Output Voltage RMS
104-110-115-120/208-220-230-240VAC(optional)
Efficiency (Peak)
85%
Output Frequency
50Hz/60Hz +/-0.3 Hz
Transfer Time
10ms(max)
SOLAR CHARGER
Maximum PV Array Power
7000W
MPPT Range @ Operating Voltage
60VDC ~ 145VDC
Number of Independent MPP Trackers/ Strings Per MPP Tracker
2/1
Maximum PV Array Open Circuit Voltage
150VDC
Maximum Solar Charge Current
120A
Maximum Efficiency
＞98%
AC CHARGER
Charge Current
100A
AC Input Voltage
240VAC
Selectable Voltage Range
184~272VAC(UPS);154~272VAC(APL)
Frequency Range
50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree
IP20
Dimension (W/H/D)
380/650/225mm
Net Weight (kgs)
64
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
0°C - 45°C
Storage Temperature
-15°C - 60°C
