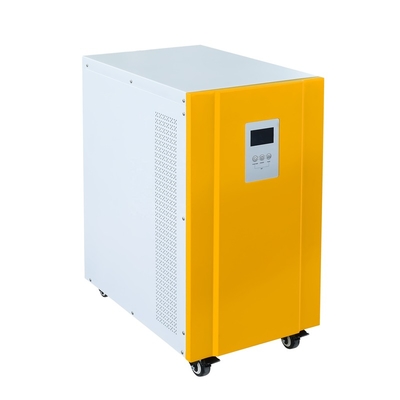

Solar Power Battery Panel Set 8kw 48 Volt 10kva Low Frequency Solar Inverter 540*350*695mm

1 Piece
MOQ
$772.50(1 - 19 Pieces) $691.90(20 - 99 Pieces) $671.74(>=100 Pieces)
Price
Solar Power Battery Panel Set 8kw 48 Volt 10kva Low Frequency Solar Inverter 540*350*695mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: WD-8000W 48v
Input Voltage: 48V
Output Voltage: 110V/220V±2%
Output Current: According To The Load
Output Frequency: 45Hz-60Hz
Output Type: Single
Size: 540*350*695mm
Type: DC/AC Inverters
Inverter Efficiency: ≥85%
Certificate: CE
Warranty: 3 Years
Weight: 66kg
Product Name: Solar Inverter
Rated Power: 8000W
Model Number: WD-8000W
Output Waveform: Pure Shine Wave
Output Current: According To The Load
Output Frequency:: 50/60Hz
AC Input Frequency Range: 45-65Hz
Efficiency: >85%
Output Frequency Range: Tracking Automatically
Display: LCD
Basic Infomation
Certification: CE
Model Number: WD-8000W 48v, WD-8000W
Payment & Shipping Terms
Packaging Details: Each piece is packed in carton cases.
Product Description
Hot Sales
Product Description
Solar Power Battery Panel Set 8kw 48 volt Low Frequency 10kva Solar Inverter
Feature
●Pure sine wave output ●High efficiency toroidal transformer lower loss ●Intelligent LCD integration display ●AC charge current 0-20A adjustable, battery capacity configuration more flexible ●Three types working modes adjustable: AC first, DC first, energy-saving mode ●Frequency adaptive function, adapt to different grid environments ●Built-in PWM or MPPT controller optional ●Added fault code query function, facilitate user to monitor the operation state in real time ●Support diesel or gasoline generator, adapt any tough electricity situation ●RS232/RS485 communication port/APP optional
Product Details
Application
Specification
Parameters
Model WD
80248/96
10348/96/192/384
12396/192/384
153192/240/384
Rated Power
8KW
10KW
12KW
15KW
Peak Power(20ms)
24KW
30KW
36KW
45KW
Start Motor
5HP
7HP
7HP
10HP
Battery Voltage
48/96VDC
48/96/192/384VDC
96/192/384VDC
192/240/384VDC
Max AC charging current
0A-20A (Depending on the model, The maximum charging power is 1/4 of the rated power)
Size(L*W*Hmm)
540*350*695
593*370*820
Packing Size(L*W*Hmm)
600*410*810
656*420*937
N.W.(kg)
66
70
77
110
G.W.(kg)(Carton Packing)
77
81
88
124
Installation Method
Tower
Parameter
Input
DC Input Voltage Range
10.5-15VDC(Single battery voltage)
AC Input Voltage Range
73VAC~138VAC / 83VAC~148VAC / 145VAC~275VAC / 155VAC~285VAC / 165VAC~295VAC(700W~7000W) / 92VAC~128VAC / 102VAC~138VAC /
185VAC~255VAC / 195VAC~265VAC / 205VAC~275VAC(8KW~40KW)
AC Input Frequency Range
45Hz~65Hz
AC charging method
Three-stage (constant current, constant voltage, floating charge)
Output
Efficiency(Battery Mode)
≥85%
Output Voltage(Battery Mode)
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% (battery mode)
Output Frequency(Battery Mode)
50Hz±0.5 or 60Hz±0.5
Output Wave(Battery Mode)
Pure Sine Wave
Efficiency(AC Mode)
>99%
Output Voltage(AC Mode)
Follw input
Output Frequency(AC Mode)
Tracking Automatically
Output waveform distortion
(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode)
≤1% rated power
No load loss(AC Mode)
≤2% rated power( charger does not work in AC mode)
No load loss(Energy saving Mode)
≤10W
Protection
Battery undervoltage alarm
Factory default: 11V(Single battery voltage)
Battery undervoltage protection
Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm
Factory default: 15V(Single battery voltage)
Battery overvoltage protection
Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage
Factory default: 14.5V(Single battery voltage)
Overload power protection
Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection
Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection
>90°C(Shut down output)
Working Mode
Battery First/AC First/Saving Energy Mode
Transfer Time
≤4ms
Display
LCD
Thermal method
Cooling fan in intelligent control
Communication(Optional)
RS232/RS485/APP(WIFI monitoring or GPRS monitoring)
Environment
Operating temperature
-10℃~40℃
Storage temperature
-15℃~60℃
Noise
≤55dB
Elevation
2000m(More than derating)
Humidity
0%~95% ,No condensation
Warranty
1 year
Packing & Delivery
Each piece is packed in carton cases.
Company Profile
About us
Harbin Shuoxiang Technology Development Co., Ltd. is a technology-based foreign trade company with an international vision, mainly engaged in solar photovoltaic power generation equipment. Over the years, the company has been keeping up with the development trend of photovoltaic technology, establishing stable supply relationships with many domestic manufacturers, and exporting products to many countries and regions in Asia, Africa, and South America.
Factory
Certificate
Buyer Reviews
FAQ
Q:Inverter Choosing Guide
A:Rated power: Inverter is used to run appliances, so the rated power should be based on the whole rated power that you want to run.
Input and output voltage: Input voltage works by battery's drawing power, typically is 12V 24V 48V 96V 192V 220V 240V 384V. Output voltage is based on standard country voltage. Input frequency: 45Hz -65Hz. Commonly used for 50 Hz or 60 Hz.
Waveform: Pure sine wave, modified sine wave and square wave. Pure sine wave inverter can provide a nice pure and smooth sine wave current. It is the best for running the appliances.
Efficiency: more than 85% would be a relatively good one.
Q:Precautions and Maintenance of Solar Inverter Installation
A:1. Before installation, make sure the solar inverter is undamaged.
2. The installation site should be no interference from other electronic equipment in the surrounding area.
3. Before making electrical connections, be sure to use opaque materials to cover the photovoltaic panels or disconnect the DC side circuit breaker. Do not expose photovoltaic array to sunlight.
4. All solar inverter installation operations must be completed by professional and technical person.
Q:Can the inverter power a house?
A:Yes, if the rated power of the inverter is large enough. The size of the inverter need be selected based on the total power of the operated equipment.
Q:Is the home inverter single-phase or three-phase?
A:Single-phase. Generally, AC power sources and loads used in industry are three-phase, while home uses single-phase.
Q:Can the inverter convert AC to DC？
A:NO. An inverter can only convert DC to AC. The ones that can convert AC to DC are called rectifiers.
