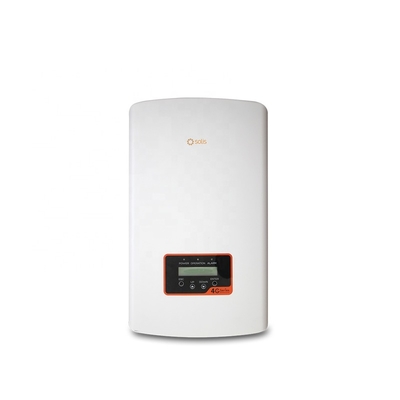

Grid Tied Solis Power System Inverter Mppt 5Kw Solar Grid Tie Solar Inverter 1P5K For Grid Tied Solar System

1 Piece
MOQ
$632.00(1 - 19 Pieces) $605.00(20 - 99 Pieces) $583.00(>=100 Pieces)
Price
Grid Tied Solis Power System Inverter Mppt 5Kw Solar Grid Tie Solar Inverter 1P5K For Grid Tied Solar System
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: Solis-1P5K-4G
Input Voltage: 90v-600v
Output Voltage: 1/N/PE, 220/230V
Output Current: 10.9-27.3A
Output Frequency: 50/60Hz
Output Type: Single
Size: 310*543*160 Mm
Type: DC/AC Inverters
Inverter Efficiency: 98.1%
Certificate: IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-3
Warranty: 5 Years Standard (Extand To 20 Years)
Weight: 11.5kg
Product Name: Solis 5kw Grid Tie Inverter
Inverter Type: Grid Tied Inverter Single Phase
Application: Grid Tied Solar Power System
AC Connection: Quick Connection Plug
Display: LCD
Start Voltage: 120Vdc
Ingress Protection: IP65
Communication: RS485, Optional: Wi-Fi, GPRS
Max. Operation Altitude: 4000m
Cooling Concept: Natural Convection
Basic Infomation
Certification: IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-3
Model Number: solis-1P5K-4G
Payment & Shipping Terms
Packaging Details: Single carton package
Supply Ability: 500 Piece/Pieces per Week
Product Description
Product Description

Solis Single Phase Inverters

Solis 4G Single Phase Inverters integrate DRM and backflow power control function, that
could suitable for smart grid requirement.
Single phase 4G series inverter contain 7 models which are listed below:
Solis-1P2.5K-4G, Solis-1P3K-4G, Solis-1P3.6K-4G, Solis-1P4K-4G,
Solis-1P4.6K-4G, Solis-1P5K-4G,Solis-1P6K-4G
Technical Specifications
Model Name
Solis-1P2.5K-4G
Solis-1P3K-4G
Solis-1P3.6K-4G
Solis-1P4K-4G
Solis-1P4.6K-4G
Solis-1P5K-4G
Solis-1P6K-4G
Input DC
Recommended max. PV power
3kW
3.5kW
4.2kW
4.6kW
5.3kW
5.8kW
6.6kW
Max. input voltage
550V
600V
Rated voltage
250V
330V
Start-up voltage
60V
120V
MPPT voltage range
50-450V
90-520V
Max. input current
11A/11A
Max. short circuit current
17.2A/17.2A
MPPT number/Max. input strings number
2/2
Output AC
Rated output power
2.5kW
3kW
3.6kW
4kW
4.6kW
5kW
6kW
Max. apparent output power
2.8kVA
3.3kVA
4kVA
4.4kVA
5kVA
5kVA
6kVA
Max. output power
2.8kW
3.3kW
4kW
4.4kW
5kW
5kW
6kW
Rated grid voltage
1/N/PE, 220/230V
Rated grid frequency
50/60Hz
Rated grid output current
11.4A/10.9A
13.6A/13.0A
16.0A/15.7A
18.2A/17.4A
20.9A/20.0A
22.7A/21.7A
27.3A
Max. output current
13.3A
15.7A
16.0A
21.0A
23.8A
25.0A
27.3A
Power Factor
>0.99 (0.8 leading - 0.8 lagging)
THDi
<3%
Efficiency
Max. efficiency
97.8%
98.1%
EU efficiency
97.1%
97.3%
Protection
DC reverse-polarity protection
Yes
Short circuit protection
Yes
Output over current protection
Yes
Surge protection
Yes
Grid monitoring
Yes
Anti-islanding protection
Yes
Temperature protection
Yes
Integrated DC switch
Optional
General Data
Dimensions (W*H*D)
310*543*160 mm
Weight
11.5kg
Topology
Transformerless
Self consumption
<1W (night)
Operating ambient temperature range
-25 ~ +60°C
Relative humidity
0-100%
Ingress protection
IP65
Cooling concept
Natural convection
Max. operation altitude
4000m
Grid connection standard
VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1,
IEC 61727
Safety/EMC standard
IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-3
Features
AC connection
Quick connection plug
Display
LCD
Communication
RS485, Optional: Wi-Fi, GPRS
